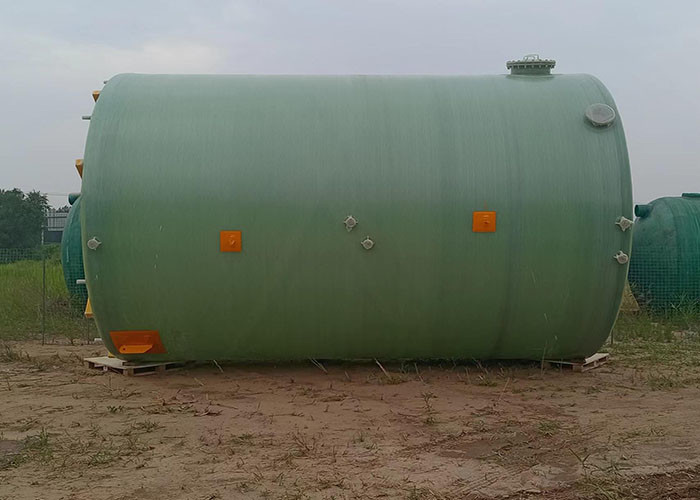

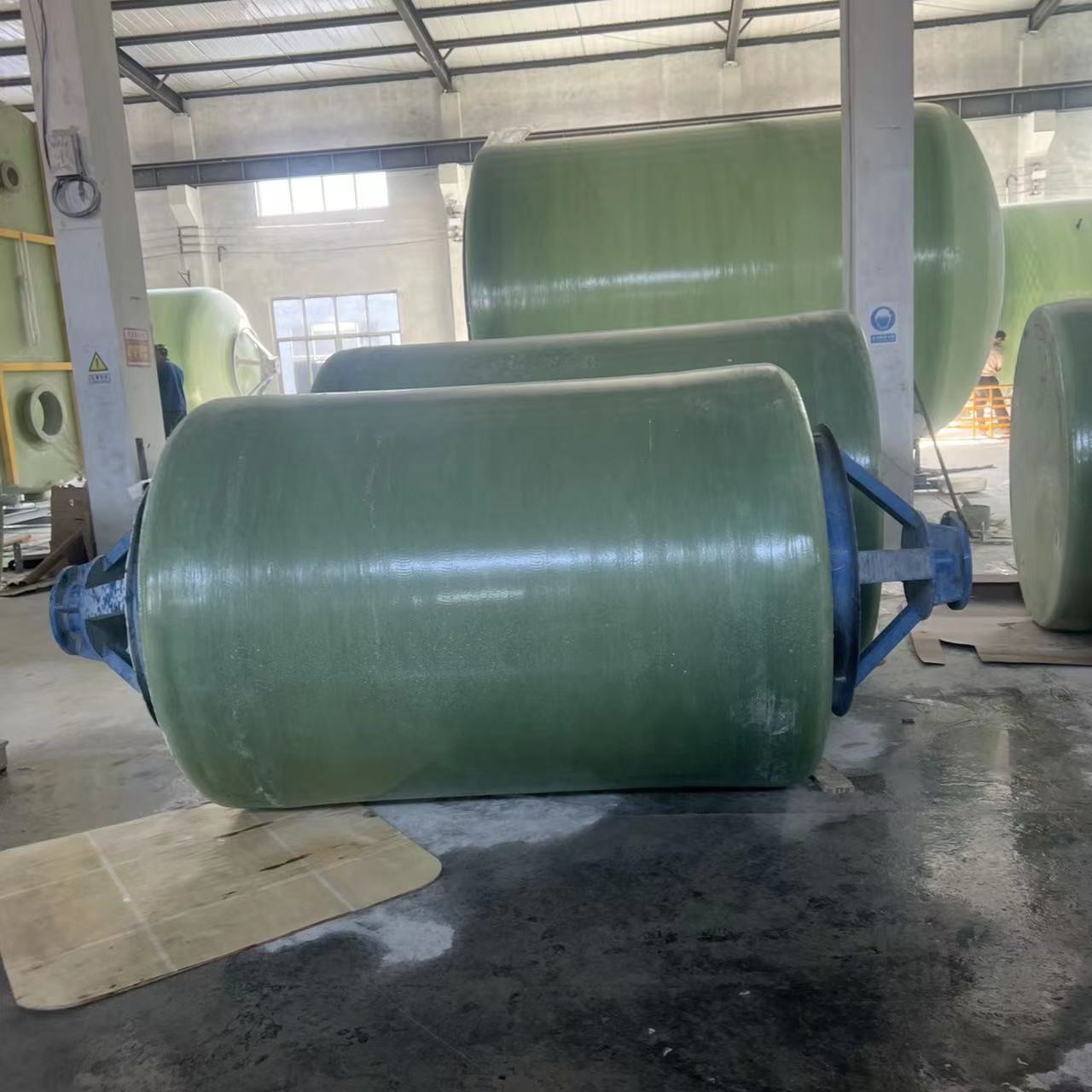

FRP GRP Horizontal Storage Tank Water Oil Storage Container

Description:

Horizontal vessels mostly adopt saddle-type supports,whose bottom plate enveloping Angle is 120-180 degrees,and the width of the bottom plate is between 150-400mm.The size of the bottom plate is composite(saddle-type supports)type A standard,and the width of reinforced plate meets type B standard.

Nom-flat-bottomed vessels may be suspended,supported,supported leg,skirt or ring.

Applications:

1. Industrial Water Treatment with multi-layer media

2. Water Softening Application

3. Centralized Filtration System for high rise residential and commercial buildings such as condominiums, high rise office building, hotels and resorts.

4. Aquaculture, fish farming and hatchery filtration system

5. And many other water filtration and treatment applications.

Advantage:

(1) Lightweight and high strength
The relative density is between 1.5 and 2.0, only 1/4 to 1/5 of that of carbon steel, but the tensile strength is close to or even higher than that of carbon steel, and the specific strength can be compared with high-grade alloy steel.
(2) Good corrosion resistance
FRP is a good corrosion-resistant material, and it has relatively resistance to atmosphere, water and general concentrations of acids, alkalis, salts, and a variety of oils and solvents.
(3) Good electrical performance
It is an excellent insulating material used to make insulators. It can still protect good dielectric properties under high frequency. It has good microwave permeability and has been widely used in radomes.
(4) Good thermal performance
FRP has low thermal conductivity, 1.25~1.67kJ/(m·h·K) at room temperature, which is only 1/100~1/1000 of that of metal. It is an excellent thermal insulation material. It is an ideal thermal protection and ablation resistant material in the instantaneous ultra-high temperature situation, and can protect the spacecraft from the erosion of high-speed airflow above 2000 ℃.
(5) Good designability
Various structural products can be flexibly designed according to needs to meet the requirements of use, and the products can have a good integrity.

Specifications:
